CUPRA Leon VZ TCR · Technical Profile

Built to Compete

Two VGR entries. One homologated touring-car platform engineered for the demands of the IMSA Michelin Pilot Challenge.

340 hpMaximum output

1,984 ccTurbocharged inline-four

6-speedSequential transmission

FWDFront-wheel drive

VGR Competition Entries

Two Cars. One Platform.

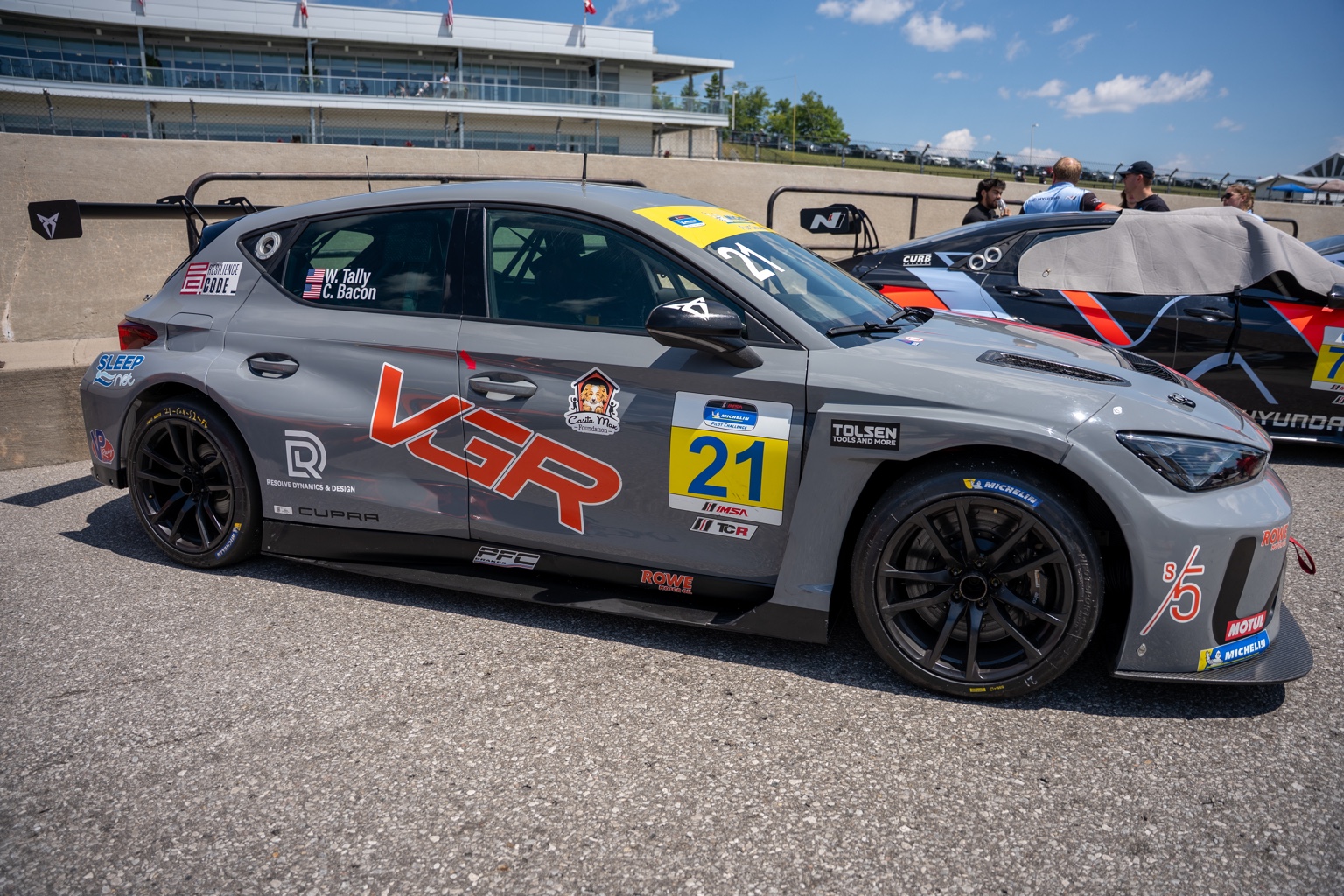

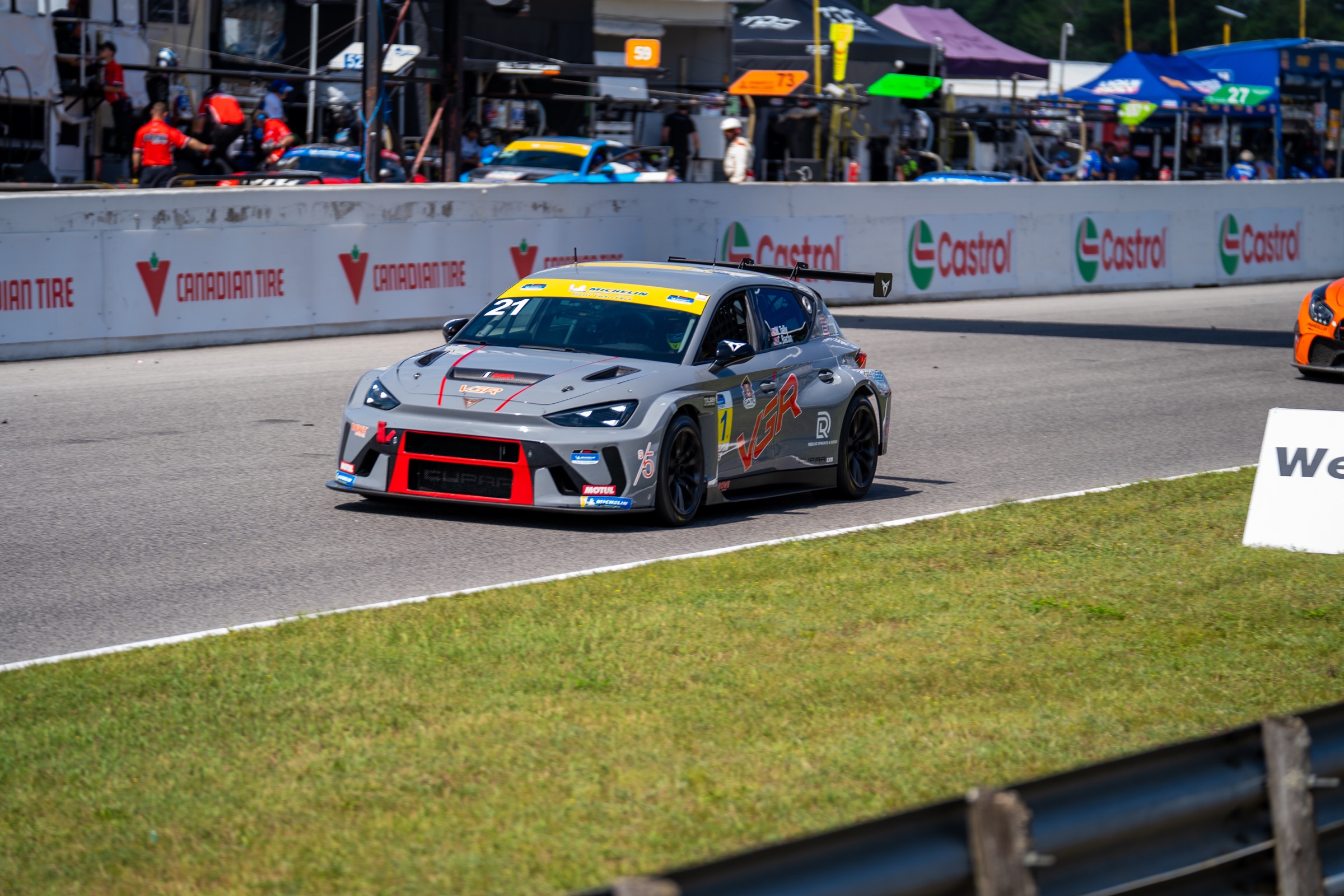

#21 CUPRA Leon VZ TCR

Prepared for William Tally and Caleb Bacon with an endurance-focused setup built around consistency, braking confidence and predictable race balance.

ClassTCRTiresMichelin

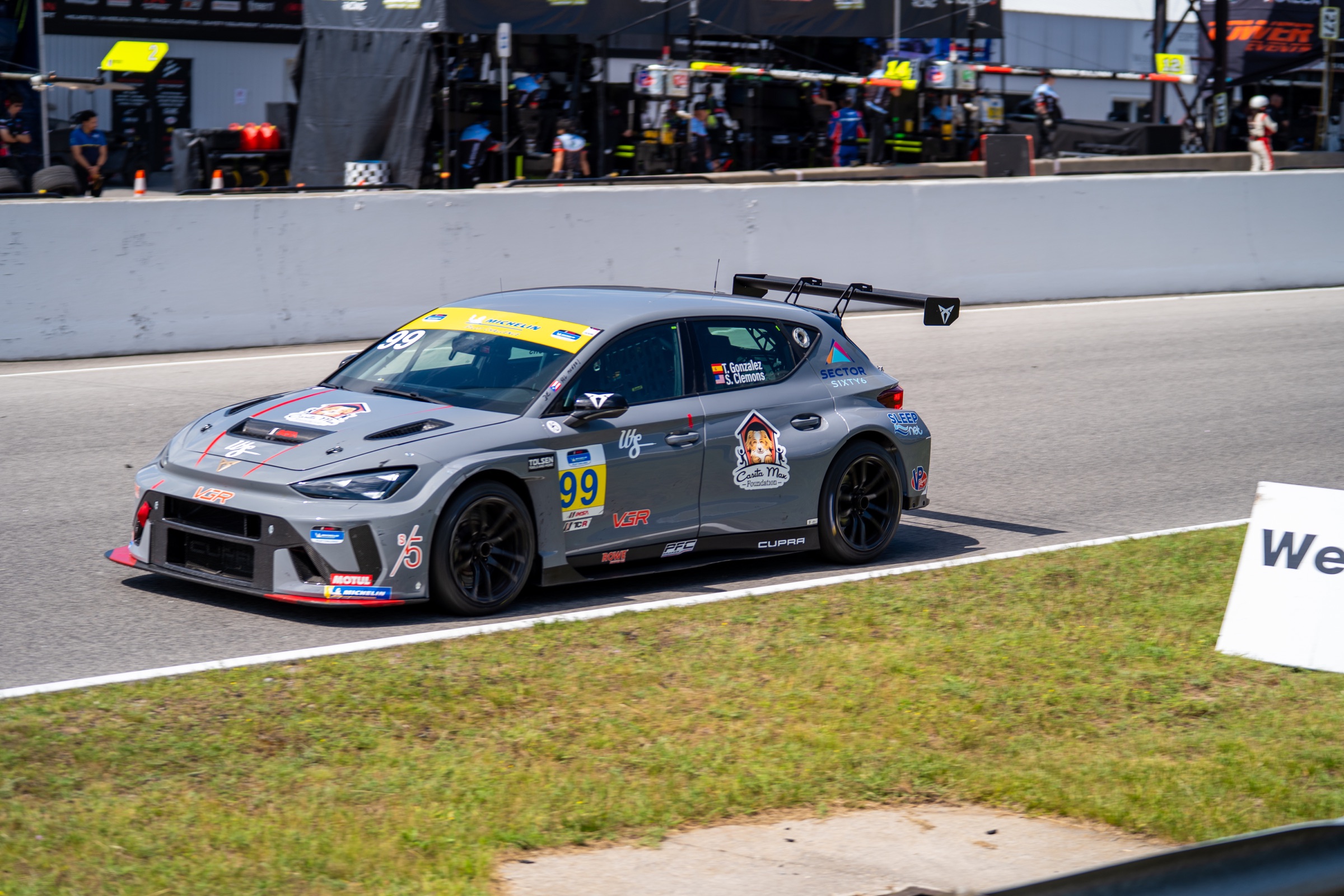

#99 CUPRA Leon VZ TCR

Driven by Tyler Gonzalez and Steven Clemons, the No. 99 combines VGR setup development with the latest CUPRA VZ TCR aerodynamic and front-axle package.

SeriesIMSA MPCDrivetrainFWD

Race Architecture

Designed Around Performance

The VZ TCR converts CUPRA’s five-door production silhouette into a purpose-built touring car. Its major systems are arranged to support aerodynamic efficiency, repeatable braking, rapid service and precise front-wheel-drive performance.

01 02 03 04

Front aero package

VZ bodywork, splitter and revised front-axle geometry manage airflow while sharpening turn-in response.

Turbo power unit

The transverse 1,984 cc turbocharged inline-four is integrated with dedicated race cooling and control systems.

Safety and data cell

The competition cockpit combines the homologated safety structure, open-top steering wheel and seven-inch driver display.

Rear aero balance

The rear wing works with the body profile and floor airflow to balance the front aerodynamic load.

Technical Data

CUPRA Leon VZ TCR Specifications

Engine & Performance

Configuration: Turbocharged inline-four, transverse
Displacement: 1,984 cc
Valvetrain: DOHC, 16 valves
Bore × stroke: 82.5 × 92.8 mm
Maximum output: 340 hp @ 7,000 rpm
Lubrication: Wet sump

Transmission & Drivetrain

Gearbox: Hewland or SADEV 6-speed sequential
Shift system: Pneumatic paddle shift
Clutch: Multi-disc silver-metallic
Differential: Multi-plate limited-slip
Driven wheels: Front-wheel drive

Chassis & Suspension

Front suspension: MacPherson strut, coil springs, two-way dampers and anti-roll bar
Rear suspension: Multi-link axle, coil springs, two-way dampers and anti-roll bar
Damper system: High-end race dampers; ÖHLINS package available
Steering: Electric power-assisted rack and pinion

Brakes

System: Dual-circuit hydraulic
Front: 6-piston calipers, 380 mm ventilated steel discs
Rear: 2-piston calipers, 272 mm steel discs
Pedal box: Competition pedal box developed for improved brake control

Dimensions & Reference Weight

Length: 4,673 mm
Width: 1,950 mm
Wheelbase: 2,703 mm
TCR reference minimum: 1,265 kg sprint / 1,210 kg endurance

Electronics & Driver Interface

Engine control: Common TCR ECU / Balance of Performance calibration
Display: 7-inch digital race display
Steering wheel: Open-top multifunction competition wheel
Data: Integrated race logging and performance monitoring

Design Language

Form Follows Function

The VZ TCR retains CUPRA’s recognizable lighting signature and five-door proportions while adding functional racing surfaces: a vented hood, widened bodywork, front splitter, flat-floor airflow management and an adjustable rear wing.

Front view of the VGR CUPRA Leon VZ TCR — 01
Cooling and front downforce

Wide-track touring-car stance

Rear angle of the VGR CUPRA Leon VZ TCR — 03
Adjustable aerodynamic balance

Reference data: CUPRA Racing and the official TCR homologated-car listing. Configuration and Balance of Performance may vary by event.
